Molastar I Type Marine Rubber Fender
PRODUCT DESCRIPTION :
Rubber fenders applicable in all kinds of shipbuilding, harbor
construction, and maritime transportation are of different types
like shearing, compressive, pneumatic, hydraulic, rotary, and
foam-floating, super cone, cylinder, tug boat, tug-D-type, delta D,
square and corner rubber fenders. All of these fenders can further
be designed with different specifications and can also be
customized as per customers' needs.
► Marine I Type Rubber Fender;
► CCS/ABS/BV/GL/DNV;
► Type:Pneumatic,CY,V,D,DA,DO,GD,SC,etc.
► Easy installation, good structure
SPECIFICATION :
► Larger rated compression, higher energy absorption. Fender energy
absorption raises 10% or so than super arch type rubber fender.
► With flexible fender installation, it can adopt latitudinal,
longitudinal and combined styles, etc. It can meet the requirements
of different docks.
► Front panel set in front of fender, it can lower the surface
pressure of vessel side board.
► UHMW-PE set in front of panel, it can decrease friction
coefficient between vessel and fender, lower the shear strength
while vessels berthing and raise fender life.
► After fender adopts combined style, slant compression performance
changes very little.
PERFORMANCE TABLE :
| Model | H | A | B | C |
| I300H | 300 | 94 | 94 | 47 |
| I400H | 400 | 125 | 124 | 63 |
| I500H | 500 | 158 | 158 | 87 |
| I550H | 550 | 172 | 170 | 87 |
| I600H | 600 | 188 | 199 | 87 |
| I750H | 750 | 235 | 230 | 118 |
| I800H | 800 | 250 | 240 | 129 |
| I1000H | 1000 | 322 | 310 | 162 |
| I1250H | 1250 | 451 | 388 | 202 |
| I1400H | 1400 | 454 | 454 | 228 |
| I1600H | 1600 | 500 | 480 | 257 |
| Specification | High reaction force | Standard reaction force |
| (KN) (KN-M) | (KN) | (KN) |
| I300H | 160 | 22 | 110 | 15 |
| I400H | 210 | 39 | 150 | 27 |
| I500H | 265 | 61 | 187 | 43 |
| I550H | 294 | 75 | 206 | 52 |
| I600H | 320 | 89 | 224 | 62 |
| I750H | 400 | 137 | 282 | 96 |
| I800H | 428 | 157 | 299 | 110 |
| I1000H | 535 | 245 | 374 | 172 |
| I1250H | 668 | 383 | 467 | 268 |
| I1400H | 775 | 516 | 543 | 361 |
| I1600H | 855 | 628 | 599 | 440 |

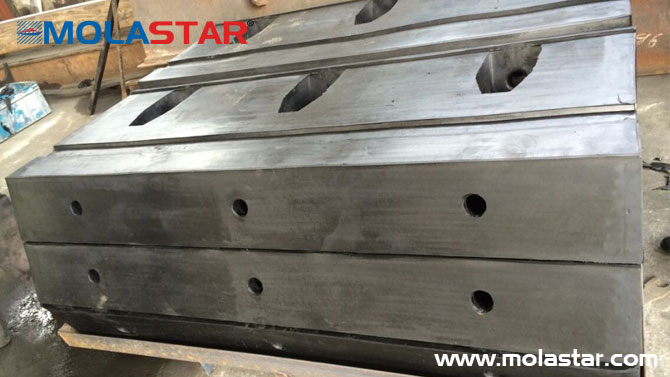

PRODUCT SHOW :

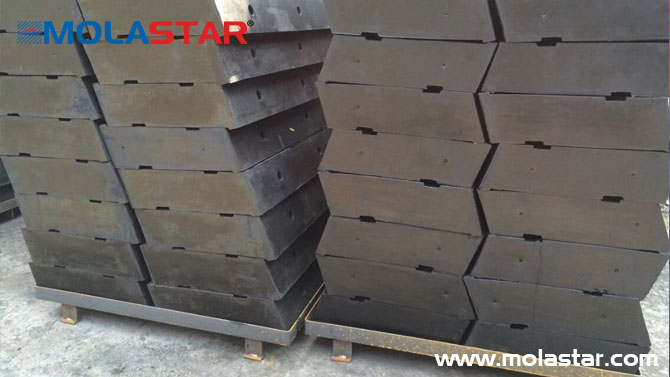

PACKING & SHIPPING:
